Model |
CC-SF15A |
|
|
CPU Type |
LGA 1155/1156 |
|
|
Fan Dimensions |
92x92x25mm |
|
|
Fan Speed |
2000±10%RPM |
700RPM -2000RPM |
|
Pole of the fan |
4 |
|
|
Bearing |
Sleeve Bearing |
|
|
Noise (dBA) |
29 |
29(MAX.) |
|
Rated Voltage |
12V |
|
|
Air flow |
45CFM |
19CFM(MIN.)~45CFM(MAX.) |
|
Heat Sink Dimensions |
Φ85*19 |
|
|
Connector |
2510-3P |
2510-4P |
|
CPU Compatibility |
I3-540 I3-530 I5-670 I5-660 I5-650 |
73 watts:I5-670,I5-660,I5-650, I3-540,I3-530 82 watts:I5-750S,I7-860S 87 watts:I5-661 95 watts:I5-750,I7-870,I7-860 Intel core i7 8xx,i5 & i3 all series |
| Contact us |
|
MS. ZHANG TEL：+86-755-83783253 zhangjing@cesz.com.cn |
|
MR. CHUCK CHEN
TEL：86-755-83783142 FAX: +86 755 83783667 |
| Links |
|
|
CPU COLLERS
|
Model |
CC-SF15A |
|
|
CPU Type |
LGA 1155/1156 |
|
|
Fan Dimensions |
92x92x25mm |
|
|
Fan Speed |
2000±10%RPM |
700RPM -2000RPM |
|
Pole of the fan |
4 |
|
|
Bearing |
Sleeve Bearing |
|
|
Noise (dBA) |
29 |
29(MAX.) |
|
Rated Voltage |
12V |
|
|
Air flow |
45CFM |
19CFM(MIN.)~45CFM(MAX.) |
|
Heat Sink Dimensions |
Φ85*19 |
|
|
Connector |
2510-3P |
2510-4P |
|
CPU Compatibility |
I3-540 I3-530 I5-670 I5-660 I5-650 |
73 watts:I5-670,I5-660,I5-650, I3-540,I3-530 82 watts:I5-750S,I7-860S 87 watts:I5-661 95 watts:I5-750,I7-870,I7-860 Intel core i7 8xx,i5 & i3 all series |

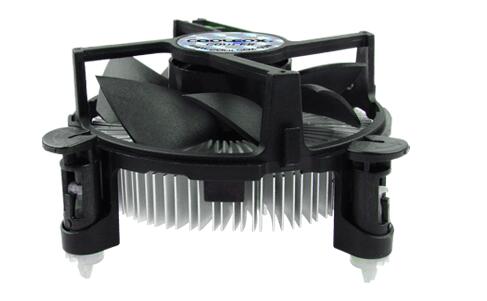

产品图片(点击查看大图)
