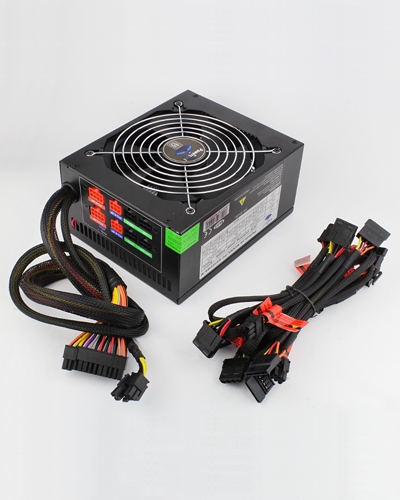

ATX-600W-14CM transparent fan;
Male scoket+I/O;
Matt finish;
Golden fan net;
Product features
Name ATX-600W
Model ATX 12V V2.3-600W
Rated power 600W
Max power 700W
Connector 20+4P, P8(4+4), 6SATA,8SATA,3HDD+FDD,2HDD
Fan 14CM transparent fan
Safety certificates CB、CE、CCC、RoHS
Description
1.Complying with INTEL ATX 12V V2.3, strengthened +12V output current provides Prescott core P4 platform a strong impetus. APFC double positive excitation circuit to improve PFC and power efficiency.
2. Using S-ATA connector, compatible effectively with SATA high-speed hard disk. PCI-E6+2 connector supports high-end graphics card.
3. Using 20+4PIN output connector, no need to convert, directly support to use 24pin M/B and meet different motherboards’ standard. Super silent with intelligent-thermal fan control technology. Using Green IC, standby power< 1W
4. Build-in LC multiple filter circuit to filter ripple, noise and inrush current.
5. Supporting Intel, AMD, VIA and other PC configuration.
Protection OVP, OLP, OCP, UVP, SCP
High voltage Voltage 1500V AC, Time 2-3 Sec，Leakage current 10Ma Max。
