ATX200W-12CM Black fan;
Male socket;
Silver fan net;
Product features

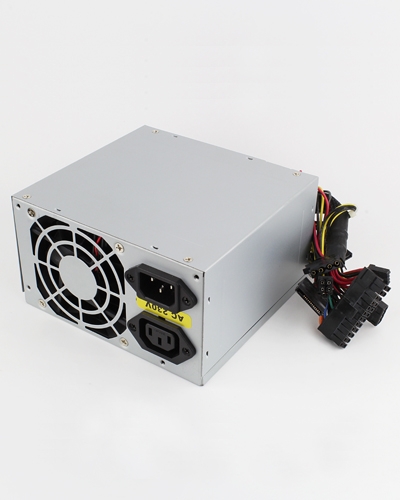

Name ATX -200W
Model ATX 12V V1.3-200W
Rated power 200W
Max power 280W
Connector 20+4P(sleeve), +12V 4P,SATA+HDD,HDD+FDD+SATA
Fan 12CM Black fan
Safety certificates CB、CE、CCC、RoHS
Description
1. Complying with INTEL ATX 12V V1.3, strengthened +12V output current provides Prescott core P4 platform a strong impetus.
2. Using S-ATA connector, compatible effectively with SATA high-speed hard disk.
3. Using 20+4PIN output connector, no need to convert, directly support to use 24pin M/B and meet different motherboards’ standard. Super silent with intelligent-thermal fan control technology
4. Build-in LC multiple filter circuit to filter ripple, noise and inrush current.
5. Supporting Intel, AMD, VIA and other PC configuration.
Protection OVP, OLP, OCP, UVP, SCP
High voltage Voltage 1500VAC, Time 2-3 Sec，Leakage current 10Ma Max。
